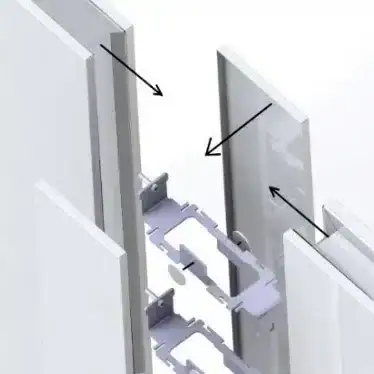

Utility Channel
Fully flexible channel for electric wiring and piping to integrate utilities in SB05 partition systems.
RECOMMENDED APPLICATIONS
- Life Sciences
Universal Panel
Panel with two separate areas, which accommodate two different utilities within the same channel e.g. electrical and piping or electrical and internet. The panel is removable to allow easy access for maintenance, upgrades or other modifications.
RECOMMENDED APPLICATIONS
- Life Sciences

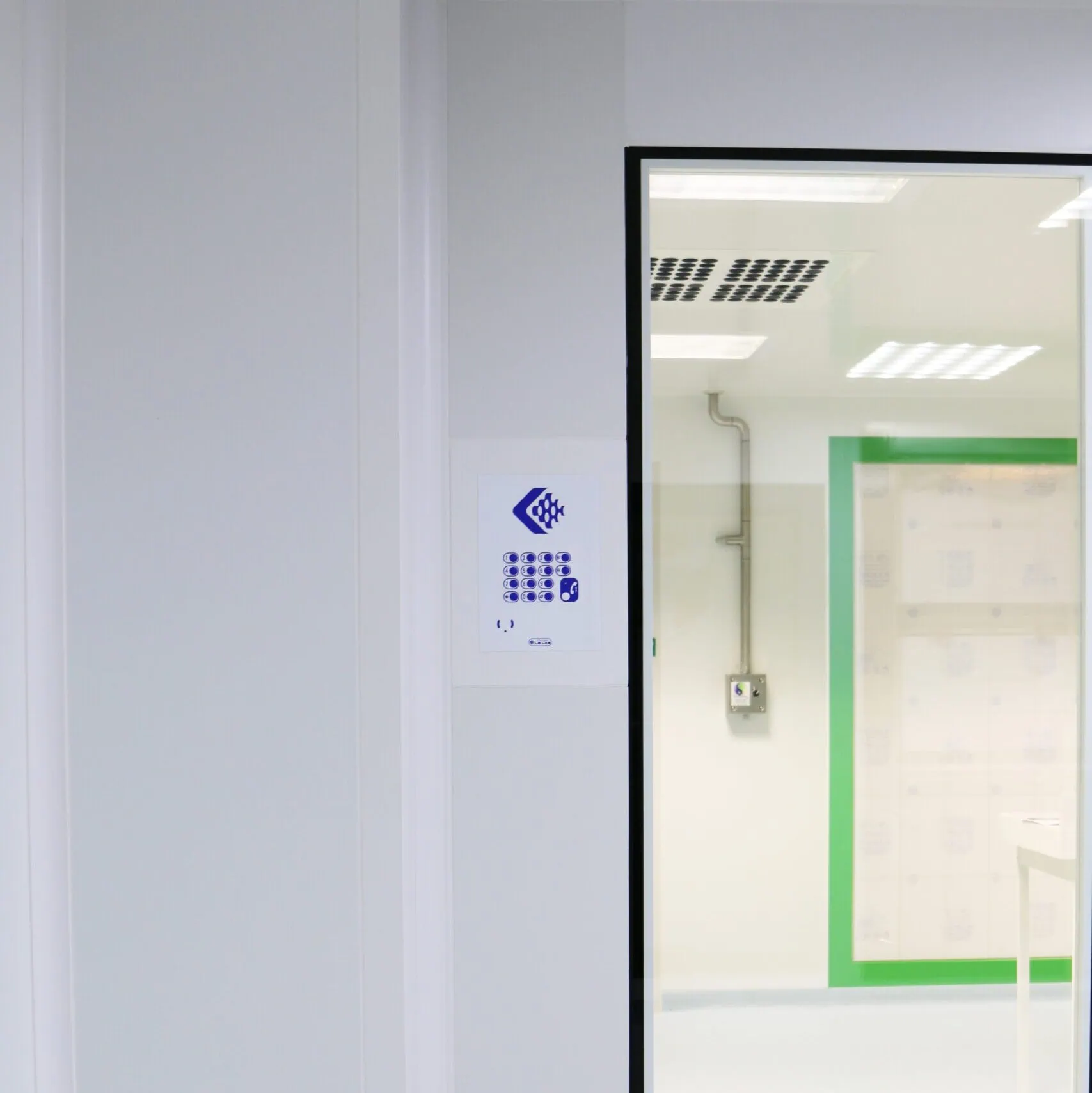

SB05 Technical Panel
Hollow utility panel used for MEP integration in 2 in cleanroom wall systems. Panels are stackable for higher wall dimensions as needed.
RECOMMENDED APPLICATIONS
- EV Battery
- Life Sciences

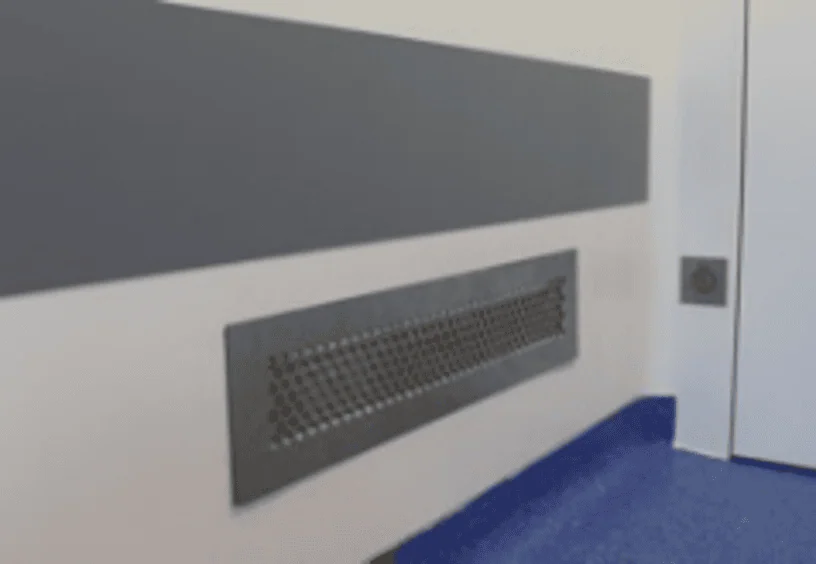

Return Air Panel
Hollow SB05 Panel for bottom air extraction​ with duct connection above the ceiling.
RECOMMENDED APPLICATIONS
- Life Sciences

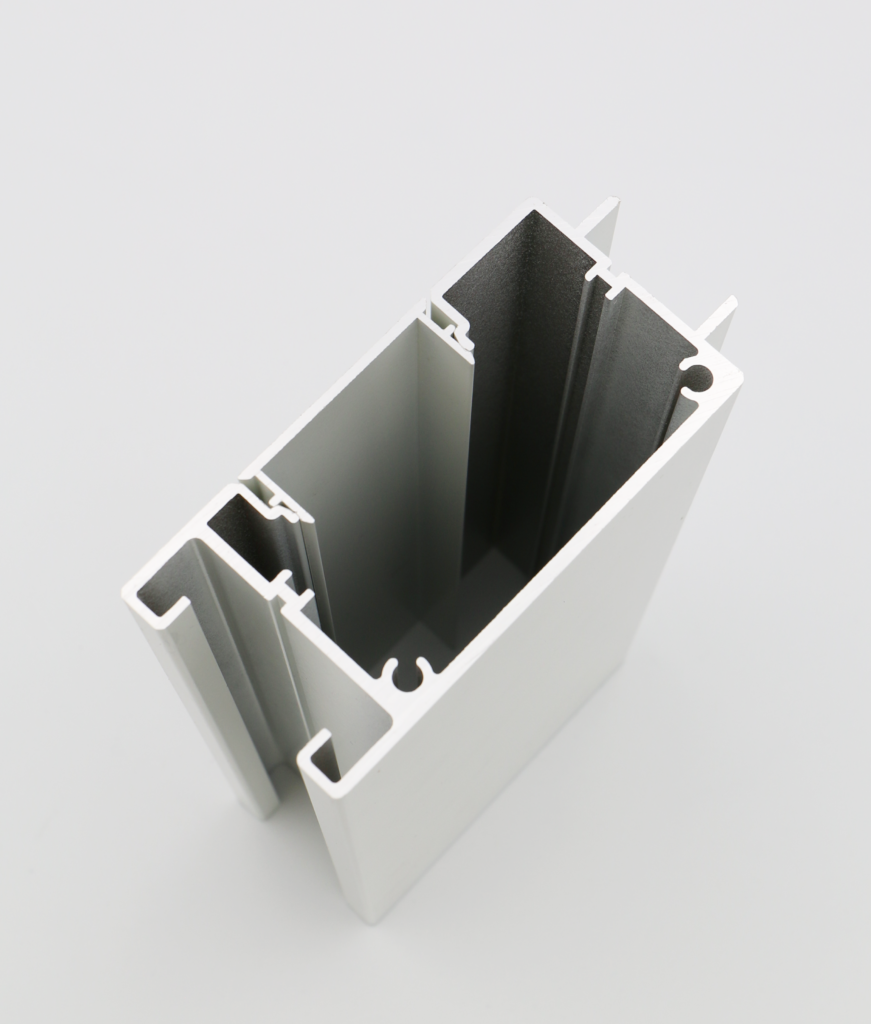

Single Electric Raceway
Electric raceway that can only be fitted into any SB05 panels for double-flush assembly. Vertical or horizontal assembly (with internal reinforcement).
RECOMMENDED APPLICATIONS
- Life Sciences

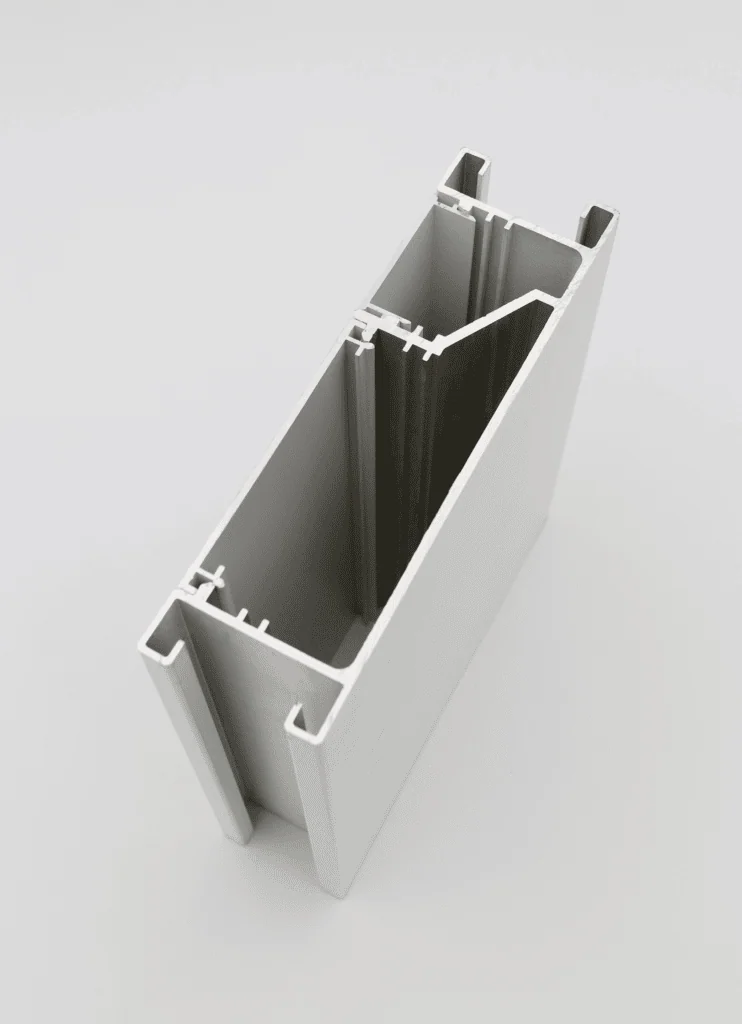

Double Electric Raceway
Two-compartment profile for high and low current separation. One compartment with a 45mm cover to house all LEGRAND MOSAIC 45 type equipment and one compartment with an 88mm cover. Can be fitted into any SB05 panels for double-flush assembly. Vertical or horizontal assembly (with internal reinforcement).
RECOMMENDED APPLICATIONS
- Life Sciences
